Material
Centring clamp QT steel.
Spring stainless steel
Spring stainless steel
Version
Centring clamp hardened (47-53 HRC) and black oxidised.
Spring bright.
Spring bright.
Show more
Show less
Description
Material
Centring clamp QT steel.
Spring stainless steel
Spring stainless steel
Version
Centring clamp hardened (47-53 HRC) and black oxidised.
Spring bright.
Spring bright.
Note

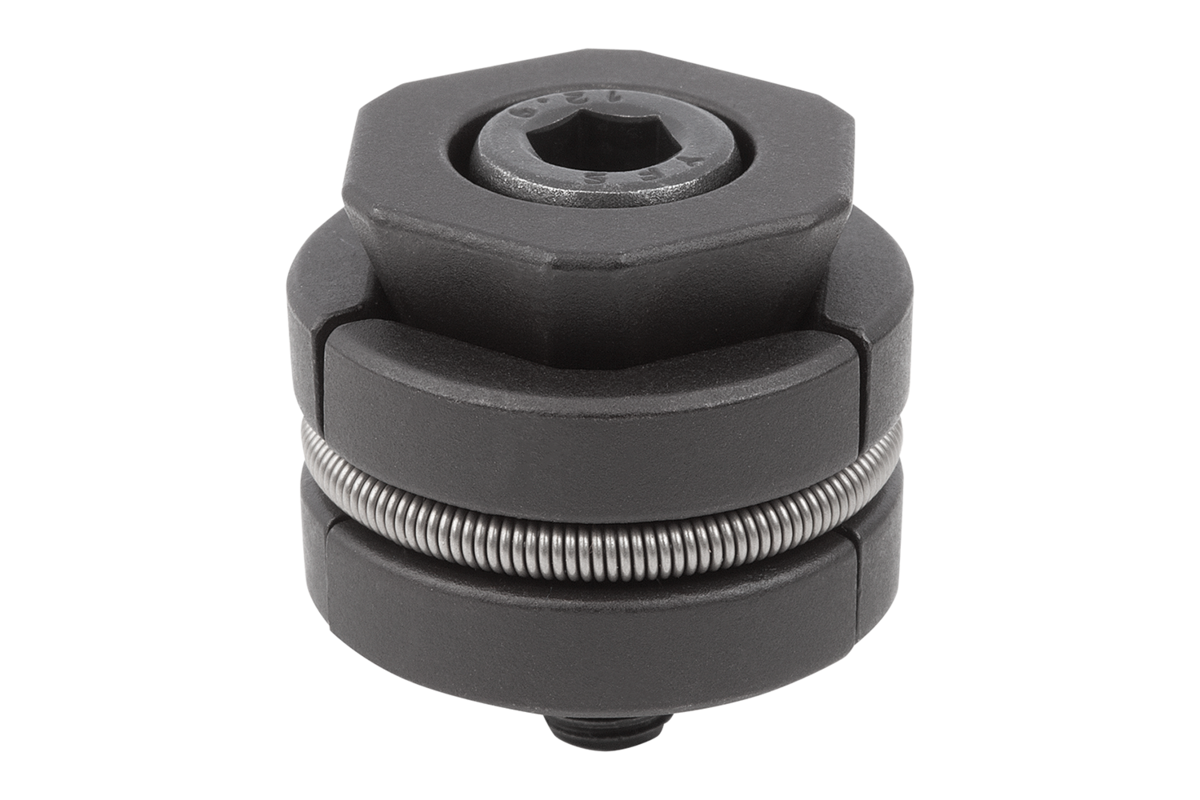

Centring clamps enable a workpiece to be centred and clamped over a bore.
During the clamping process, the clamping force acts punctually to the bore wall.
During the clamping process, the clamping force acts punctually to the bore wall.
Drawing reference
Dimension H1 refers to the height at D min.
1) Cap screw
1) Cap screw
