Material
Carbon steel.
Version
Tempered, black electro zinc-plated.
Show more
Show less
Description
Material
Carbon steel.
Version
Tempered, black electro zinc-plated.
Note
When using the clamping element without a DIN 508 T-slot nut, the tensile strength of the mounting plate must be at least 900 N/mm².
Do not clean using compressed air.
Do not clean using compressed air.
Application

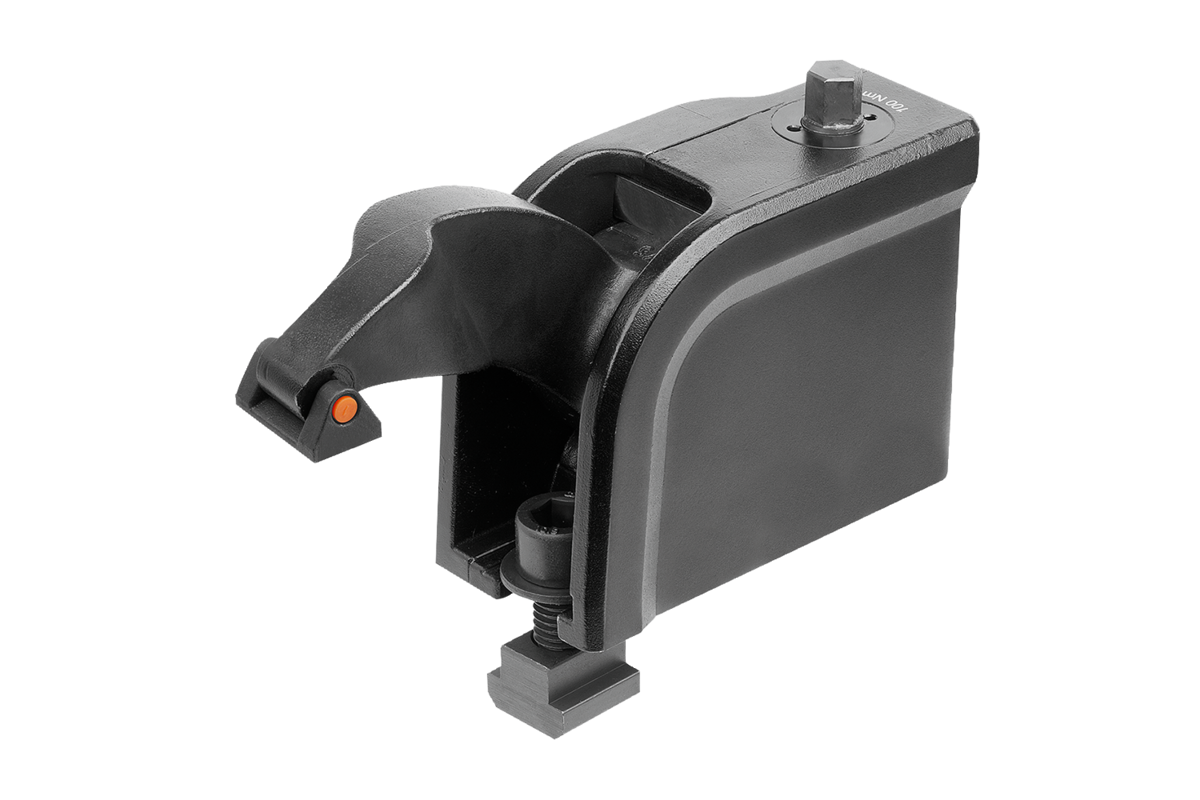

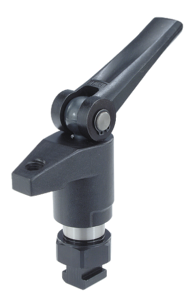

The height of the clamping arm can be infinitely adjusted using the adjustment screw and the workpiece can then be clamped.
Advantages
- Infinite clamping
- Clamping force 12 kN / 16 kN.
- Compact design.
- Height scale enables quick presetting of the clamping height.
- Captive thrust pad pre-installed.
- Dirt and swarf repellent.
- The curved clamping arm ensures vertical, reliable clamping with a defined torque.

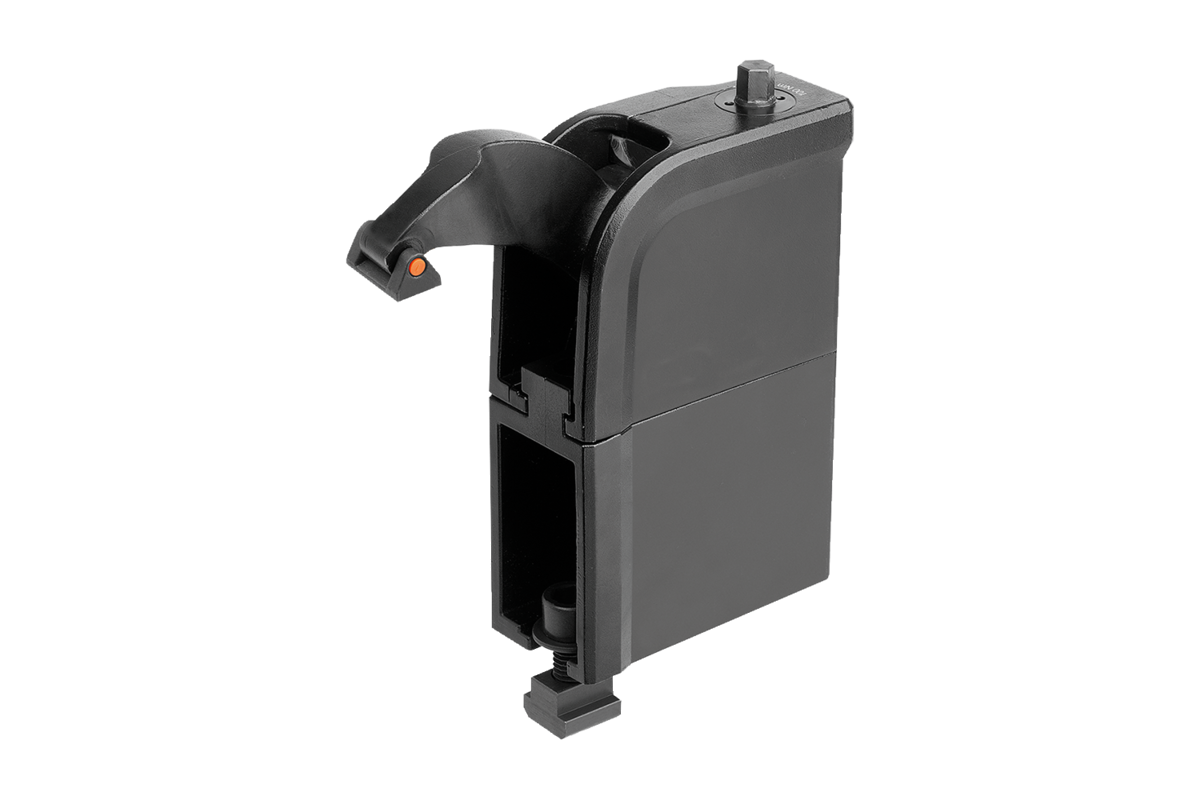

- The compact power clamp can be attached to the riser 04627-05 5without screws using a new type of quick-locking mechanism.
- Clamping force 12 kN / 16 kN.
- Compact design.
- Height scale enables quick presetting of the clamping height.
- Captive thrust pad pre-installed.
- Dirt and swarf repellent.
- The curved clamping arm ensures vertical, reliable clamping with a defined torque.
- The compact power clamp can be attached to the riser 04627-05 5without screws using a new type of quick-locking mechanism.
Accessory

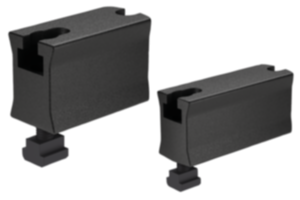

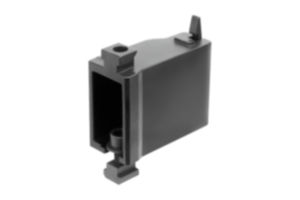

Riser with quick lock 04627-05.

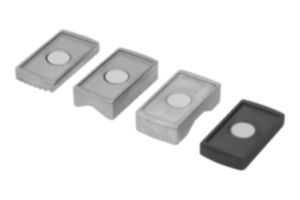

Thrust pad set 04627-10.
Thrust pad set 04627-10.
